XVC-700 / 710 / 750

welding camera Xiris XVC-700

Lightweight, digital, slimline HDR Weld Camera

A next-generation weld camera specifically designed for integration with welding automation equipment in spaces too small for traditional weld cameras.

The Xiris XVC-700 family of welding cameras packs high performance into its slimline package. Featuring a 140dB+ High Dynamic Range (HDR) sensor suitable for any welding process and with angled head configurations ranging from 0° to 90°, the all-digital Xiris XVC-7×0 takes weld imaging where it has never been able to go before.

The straight (0°) camera weighs only 89g, and with a small 22 x 22mm cross section can fit with most automated welding systems.

The XVC-7×0 camera is versatile and can use:

  • Standard S–mount and select C-Mount lenses to fit a wide range of Working Distances and Field of View.
  • Protective cooling housings for harsh and high-temperature applications up to 260°C.
  • Used with several illumination options for pre and post welding imaging.

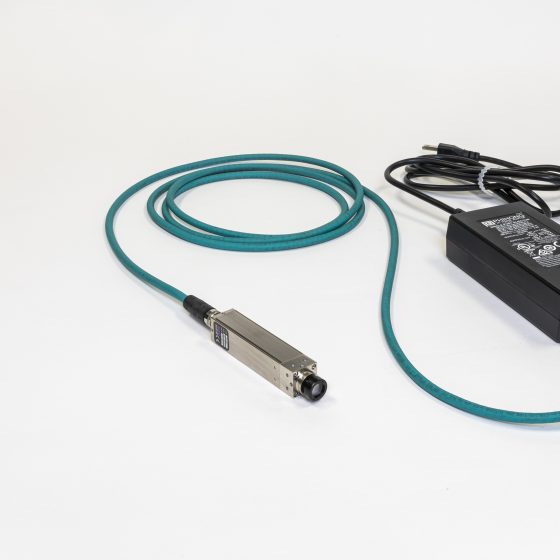

  • Connected via a single Industrial Ethernet cable using GigE and Power over Ethernet (PoE)  with cable lengths up to 100m (330ft).

Slimline Form Factor

• 22 x 22 x 107mm frame Straight (before optics)
• 89g (before optics)
• Suitable for pipe as small as 100mm/4″ diameter

Clear Picture

• +140dB HDR Sensor with Rolling and Global Shutter monochrome
XVC-700 is Monochrome, XVC-710 is color, and XVC-750 is Near InfraRed (Monochrome)
• 8 and 12 bit image Up to 54 fps (full frame)
• 1280 x 1024 pixels resolution

Simple Installation

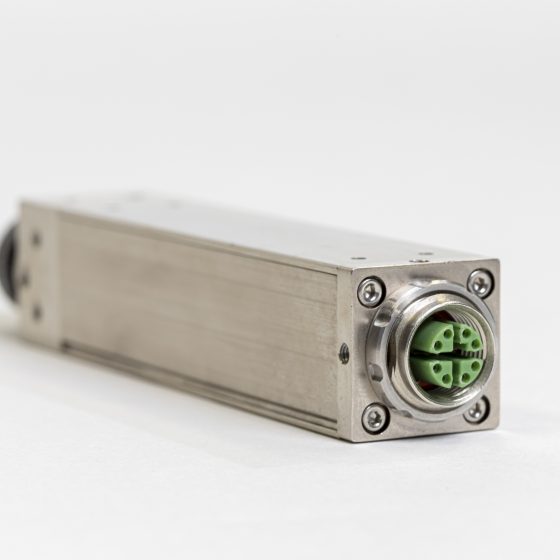

• Single M12 X coded connector for GigE interface
• Power-over-Ethernet (PoE)
• 6W maximum power consumption

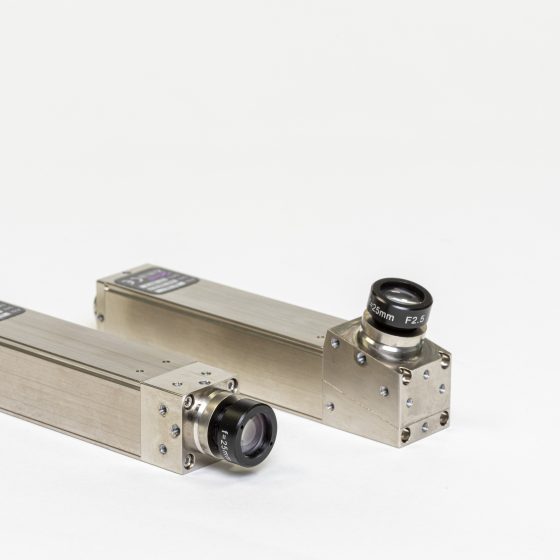

• Range of angled optics head configuration (0-90°)

The XVC-700 is versatile.

As you would expect from Xiris, the XVC-700 camera series provides flexibility.

Unprecedented in its class, the XVC-700 can be configured with optics at different angles.

It is small. It weighs only 89g. These factors together mean that the XVC-700 fits into weld imaging applications which no other camera has before been capable.

Welding Camera for Melt Pool monitoring with AI tools

XVC-750:  New Open Arc Welding Camera

The XVC-750 camera combines it’s High Dynamic Range (HDR) capability with Near Infrared (NIR) sensitivity, making it well suited to monitor or analyze GMAW or GTAW welding processes.

Size: 22W x 22H x 107L mm (0.87 x 0.87 x 4.21”) (0° without optics)
Weight: 89 g / 3.1 oz (without optics)
Dynamic Range: 140+ dB
Camera Resolution: 1280×1024 pixels
Head Inclination Angles: 0° (Straight), 15, 75, 90°. Other available upon request
Interface: GigE wt. PoE / M12 X-Coded connector
Max Cable length: 100m
Compliance: CE, FCC-B , RoHS

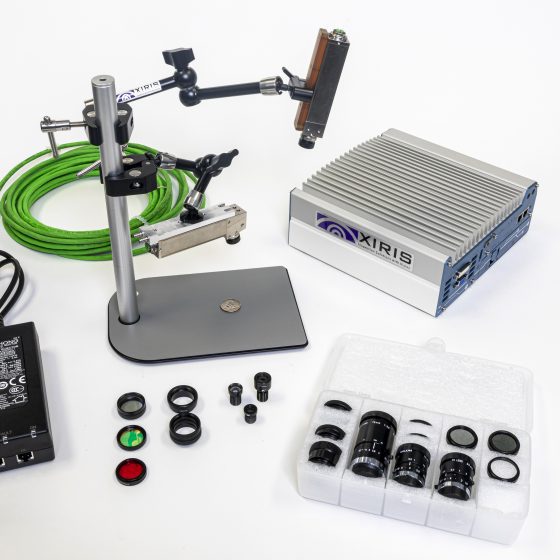

Imaging Lenses
Fanless PC
HMI
Cables
PoE adapters
External cooling plates
Industrial housings

The XVC-700 camera is fully compatible with all Xiris WeldStudio™ software suites. Xiris WeldStudio™ software provide users with a variety of powerful features for camera control, image processing and display, graphical overlays, and video recording and playback. Compatible with Microsoft Windows 7/10 (64Bit), it includes the Xiris camera driver and controls, and graphic tools to provide the user with crosshairs and targets.

Using the WeldSDK these software components can be customized and fully integrated into your welding automation or Additive Manufacturing system.

Software Upgrades
Xiris releases a major new release of software on average once a year with minor upgrades more frequently.

Download XVC-700 Datasheet
Weld Camera Datasheet XVC-700

Contact Support – Monday – Friday: 0830 – 1730 Eastern Standard Time
Phone: +1.905.331.6660
Fax: +1.905.331.6661
Email: support@xiris.com

Our partners also provides support and service to our clients at many locations around the world.

Service & Training
Xiris provides its customer base with various levels of service, including new system installation and training, system upgrades and preventative maintenance programs. Many of our partners are trained to offer additional support on our systems.

System Upgrades
Many of our older systems in the field have been upgraded to allow the use of new hardware and software features including improved system reliability, system security, production reporting and updated operating systems. Do you have an older Xiris vision system? Please call your Xiris account manager to receive more information regarding the immediate benefits of a system upgrade.

Preventative Maintenance Visits
Many of our clients request a Preventative Maintenance visit in conjunction with a new system delivery or as a separate service. Our technicians will optimize the performance of the system, upgrade software as applicable, look for potential part failures and conduct training as desired by the client during the visit.

Warranty
All Xiris systems are shipped with a 15-month warranty from the day of shipment from Xiris or a 12-month warranty which commences from the first day of use (whichever comes first). Please have your Xiris system serial number available when you call so we can determine your system warranty status as well as your support plan level.

Once your Warranty expires, your Xiris Account Manager will contact you to discuss your long term support needs. Xiris offers different levels of support plan.
