XVC-1000 / 1100

XVC-1000 weld camera side view

HDR Weld Camera For OEMs, Advanced End Users Or Research/Lab Environments

Unprecedented image quality for a variety of welding and laser processes.

The Xiris XVC-1000 Weld Camera combines a spectacular 140+ dB High Dynamic Range capability and a host of unique features to provide unprecedented image quality of a variety of welding and laser processes.

The XVC-1000 is monochrome and the XVC-1100 is color.

Field Programmable Gate Array

On-board FPGA controls all camera functionality, including on-camera image processing, Area of Interest (AOI), Picture in Picture (PIP) and GPIO functions. It can also be updated with new firmware and features.

Highly Versatile

With uncompromising performance and compatibility with a large array of C mount optics and accessories, it is easy to integrate and use. Ideal for most R&D, training and OEMs for all welding processes and Additive Manufacturing.

Triggering

Hardware / software triggering to synchronize image acquisition to an
external device such as a welding power supply, light source, or to other
cameras. Supported modes include free running, external, and single shot
triggering, with an optional trigger delay.

Size: 40W x 43H x 65L mm (1.6 x 1.7 x 2.6″) without optics
Weight: 135 g / 4.8 oz (without optics)
Camera Resolution: 1280×1024 pixels
Dynamic Range: 140+ dB, Color or Mono
Interface: GigE / Locking RJ45 , Hirose Trigger Connector
Max Cable length: 100m
Compliance: CE, FCC-B , RoHS

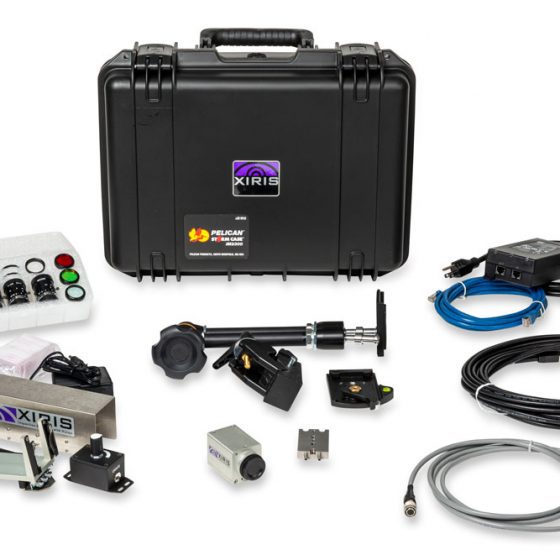

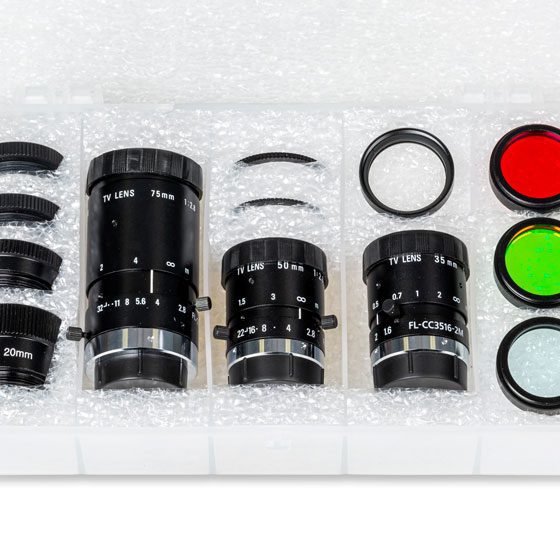

Imaging Lenses and kits
Xiris industrial HMI
Fanless PC
Camera cables up to 100M
Camera Power and I/O cables up to 20M
Power adapters
POE Injector
External cooling plates

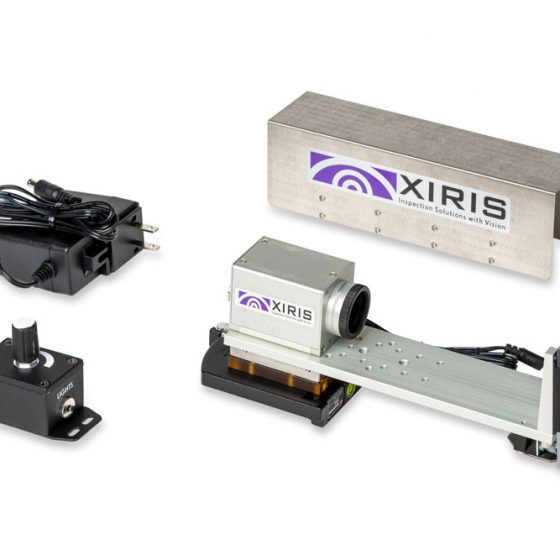

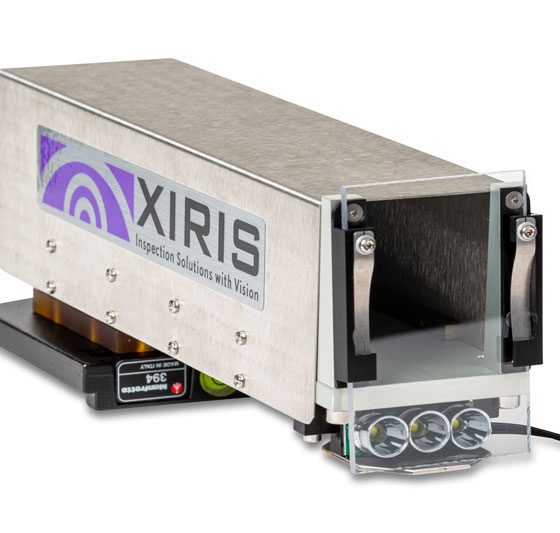

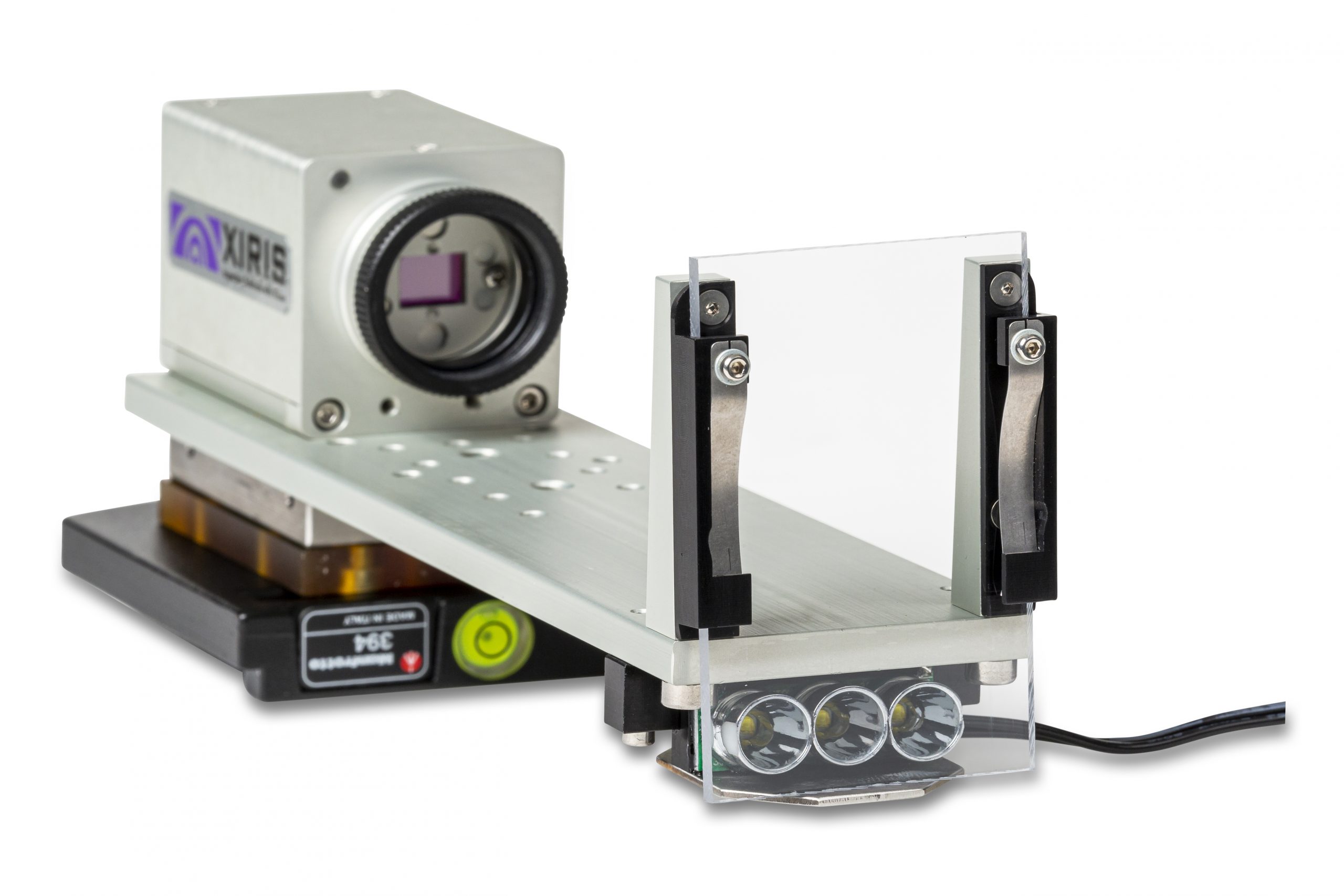

External LED lighting and Mounting

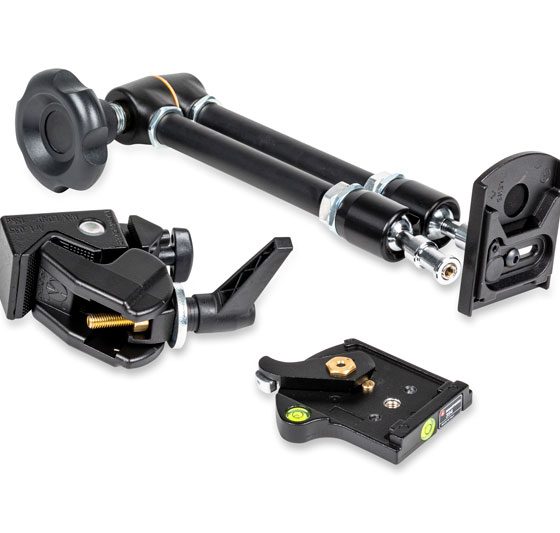

Flexible Mounting arms

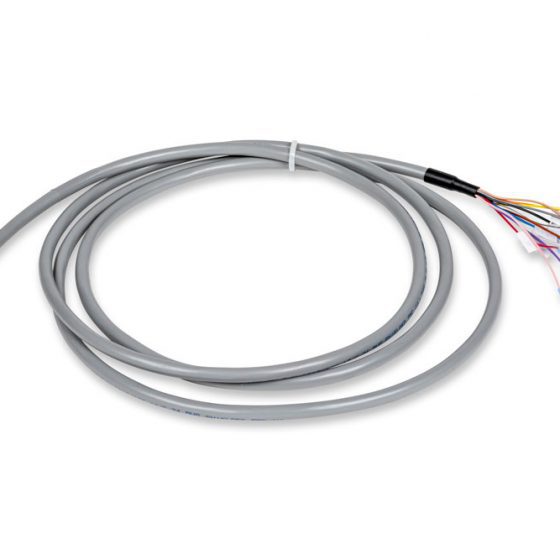

Camera trigger and I/O breakout interfaces

The camera works with Xiris SeamMonitor™, XVC-1X00e System or WeldStudio™ software suite running on Microsoft Windows 7/10. These include the Xiris camera GigE interface(s), camera controls and enhanced imaging software tools to provide unprecedented image quality and process information of a variety of welding and laser processes. Also included is a full video recording and playback utility.

Using the WeldSDK™ these software components can be customized and fully integrated into your welding automation system.

Software Upgrades
Xiris releases a major new release of software on average once a year. Minor upgrades occur more frequently. Our technicians may upgrade client systems while on site at a client’s request.

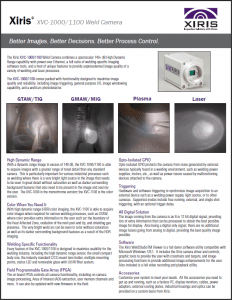

Request a Datasheet

Contact Support – Monday – Friday: 0830 – 1730 Eastern Standard Time
Phone: +1.905.331.6660
Fax: +1.905.331.6661
Email: support@xiris.com

Our partners also provides support and service to our clients at many locations around the world.

Service & Training
Xiris provides its customer base with various levels of service, including new system installation and training, system upgrades and preventative maintenance programs. Many of our partners are trained to offer additional support on our systems.

System Upgrades
Many of our older systems in the field have been upgraded to allow the use of new hardware and software features including improved system reliability, system security, production reporting and updated operating systems. Do you have an older Xiris vision system? Please call your Xiris account manager to receive more information regarding the immediate benefits of a system upgrade.

Preventative Maintenance Visits
Many of our clients request a Preventative Maintenance visit in conjunction with a new system delivery or as a separate service. Our technicians will optimize the performance of the system, upgrade software as applicable, look for potential part failures and conduct training as desired by the client during the visit.

Warranty
All Xiris systems are shipped with a 15-month warranty from the day of shipment from Xiris or a 12-month warranty which commences from the first day of use (whichever comes first). Please have your Xiris system serial number available when you call so we can determine your system warranty status as well as your support plan level.

Once your Warranty expires, your Xiris Account Manager will contact you to discuss your long term support needs. Xiris offers different levels of support plan.
