WeldStudio™ 3
and WeldStudio™ 3 Pro

A new generation of WeldStudio™ is here. Powerful image processing, recording, and measurement tools for controlling and displaying images from Xiris weld and thermal cameras.

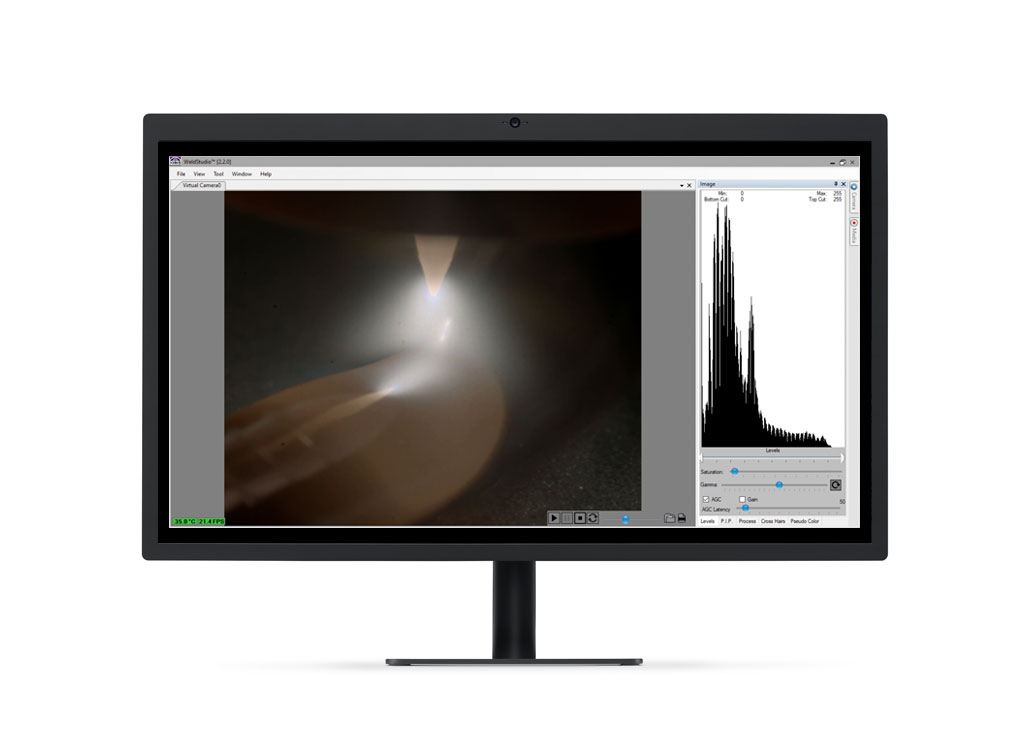

WeldStudio3Pro Screenshot in Monitor - Licensed

Scalable and Easy to Use

With an improved user interface and touch screen capabilities, WeldStudio™ 3 and WeldStudio™ 3 Pro are easy to navigate and incorporate into your existing workflow.

Using more than one Xiris camera? WeldStudio™ 3 and WeldStudio™ 3 Pro can integrate multiple Xiris weld cameras in order to capture visuals of your welding process from various points of view.



View and Record Welds

Remotely view, record, and playback welding processes captured with Xiris weld cameras.

Connects with Xiris Products

Easy connection with Xiris weld cameras, CellView Camera and the WeldMic™.

Touchscreen Friendly

Simplified use with any screen resolution on any suitable HMI or computer.

Effortless Set-up

Recipe Management enables multi-camera system settings to be set-up, saved, and recalled.

Auto Recover Data

Prevent lost data and minimize down-time due to accidental disconnections with the Auto Recover feature.

Visualize Weld Audio

Fine-tune your welding process with recorded weld audio when using an integrated Xiris WeldMic™.



Some of Our New and Improved Tools



Software Comparison

Features WeldStudio™ 3 WeldStudio™ 3 Pro
Recommended for Training Facilities and Instructors, Hard Automation Operators, End Users, and more Advanced Integrators, OEMs, Research & Development, Additive Manufacturers, Robotic Systems, and more
Supported Xiris Products XVC-700/710, XVC-1000/1100, XVC-1000e/1100e, CellView Camera, WeldMic™ XIR-1800, XVC-700/710, XVC-1000/1100, XVC-1000e/1100e, CellView Camera, WeldMic™
Maximum Number of Connected Cameras 2 4 or more
Camera Controls
  • 8-12 Bit Mode
  • Free Running Mode
  • Triggering Mode
  • AOI Control
  • 8-12 Bit Mode
  • Free Running Mode
  • Triggering Mode
  • AOI Control
Image Processing Controls
  • Image rotation, Mirror/Flip
  • Auto Gain Control or Manual Tone Mapping Control
  • Trigger & IO Control
  • Pseudo Color
  • Multiple Monitor Capability
  • Image Sharpening Tools
  • Digital Zoom
  • Video Averaging
  • Image rotation, Mirror/Flip
  • Auto Gain Control or Manual Tone Mapping Control
  • Trigger & IO Control
  • Pseudo Color
  • Multiple Monitor Capability
  • Image Sharpening Tools
  • Digital Zoom
  • Video Averaging
  • Color mapping for XIR-1800 thermal images
Audio Processing Controls
  • Waveform Charts
  • Sound Equalizer
  • Audio AI Tool
  • STFT Measurements
  • Waveform Charts
  • Sound Equalizer
Video Recording and Playback Capabilities
Video Streaming with Real Time Streaming Protocol (RTSP)
Machine Vision Tools
  • Blob Tool
  • Edge Tool
  • Caliper Tool
  • Emissivity Map
  • Line Profile
  • Pixel Reader
  • Advanced Pixel Reader
  • Hot Cold
  • Measurement Tool
  • More to come
Software Add-ins
  • Xiris MQTT Interface for the Lincoln Power Wave®
  • OPC-UA (Client)
  • Modbus/TCP Interface
PC Requirements and Monitor Capabilities
  • Windows 10 or later (64 Bit)
  • 8 GB RAM
  • Support for up to 3 HD displays
  • See Datasheet for all PC requirements
  • Windows 10 or later (64 Bit)
  • 16 GB RAM
  • Support for up to 4 HD displays
  • See Datasheet for all PC requirements
Pricing Included with purchase of all XVC Weld Cameras Included with purchase of XIR-1800 Thermal Cameras.
For use with XVC Weld Cameras, contact our sales team.
Request WeldStudio 3 Datasheet Request WeldStudio 3 Pro Datasheet

Not sure which WeldStudio™ 3 software application will work best for your application? Our sales team can help.
Send us an email at info@xiris.com or call us direct at +1.905.331.6661.
